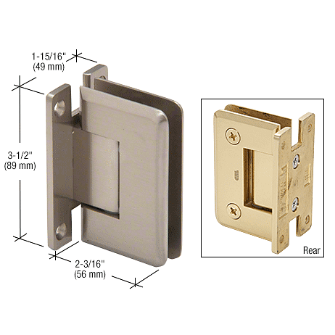

GPI LUXE SERIES H BACK PLATE WALL MOUNT HINGE
$38.84
Can be mount directly to the wall to secure glass door for 5/16”-1/2” glass CHROME 80lbs – 36.28kg 120lbs – 54.43kg 28” - 71.12cm 32” - 81.28cm 3-1/2” - 88.90mm 2-3/16” - 55.56mm N/A N/A N/A N/A 1.565lbs BRUSHED NICKEL 80lbs – 36.28kg 120lbs – 54.43kg 28” - 71.12cm 32”...
Can be mount directly to the wall to secure glass door for 5/16”-1/2” glass

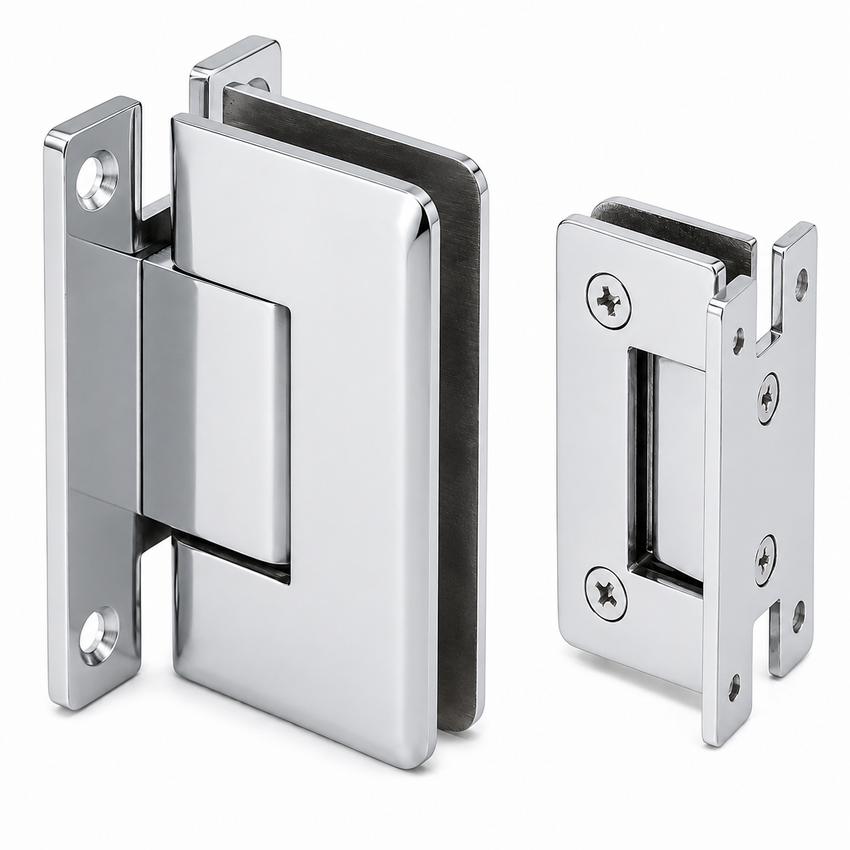

CHROME | 80lbs – 36.28kg | 120lbs – 54.43kg | 28” - 71.12cm | 32” - 81.28cm | 3-1/2” - 88.90mm | 2-3/16” - 55.56mm | N/A | N/A | N/A | N/A | 1.565lbs |

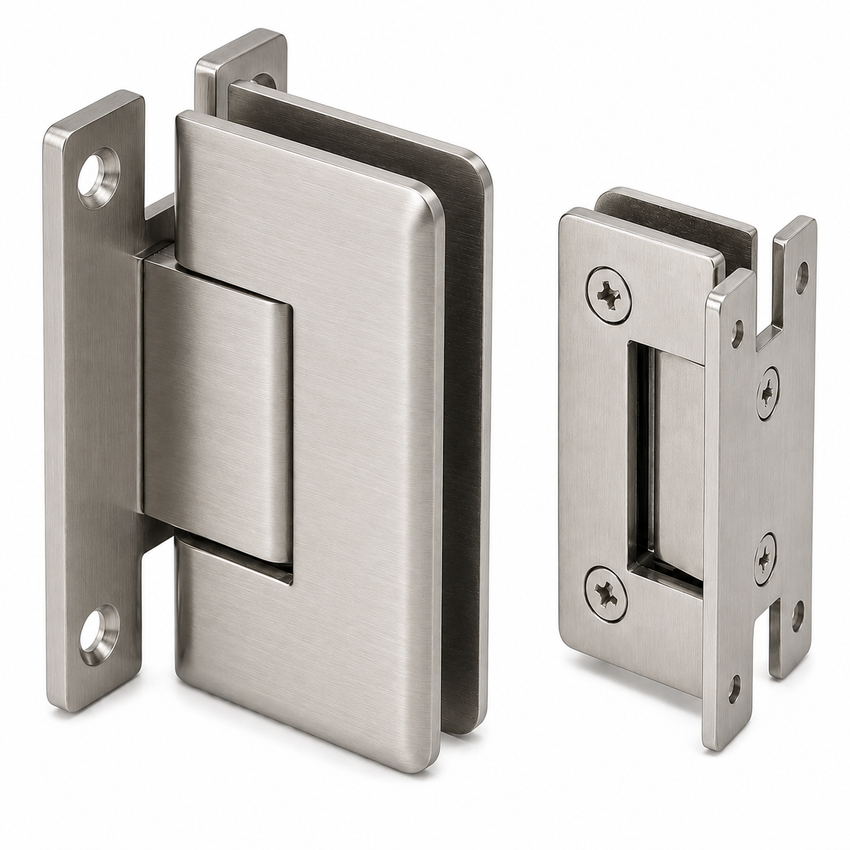

BRUSHED NICKEL | 80lbs – 36.28kg | 120lbs – 54.43kg | 28” - 71.12cm | 32” - 81.28cm | 3-1/2” - 88.90mm | 2-3/16” - 55.56mm | N/A | N/A | N/A | N/A | 1.565lbs |

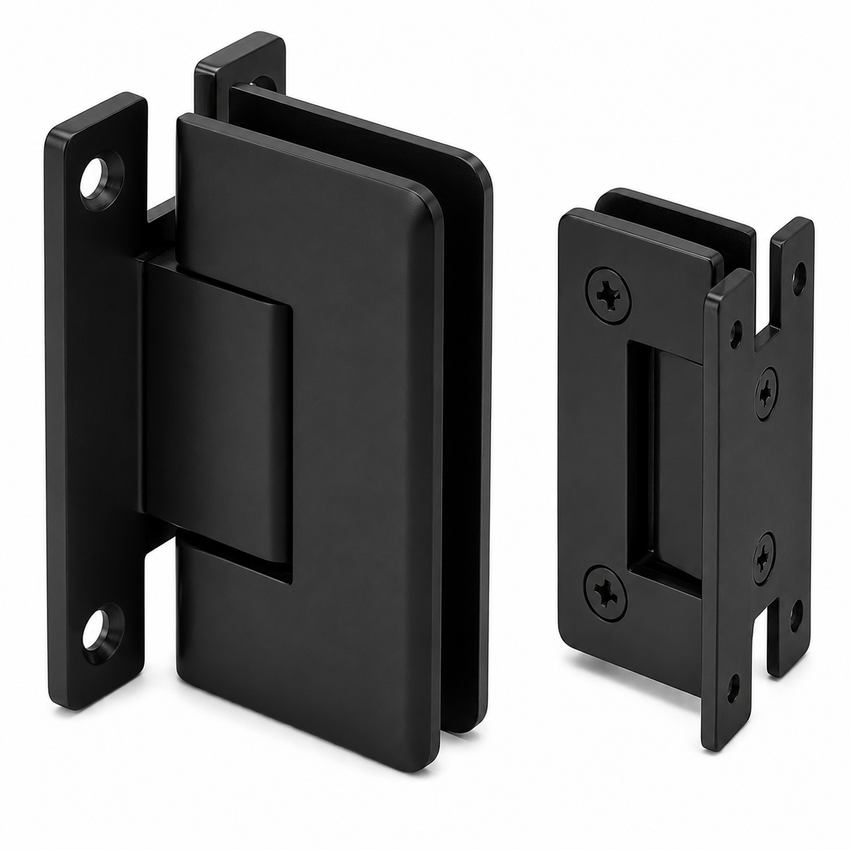

MATTE BLACK | 80lbs – 36.28kg | 120lbs – 54.43kg | 28” - 71.12cm | 32” - 81.28cm | 3-1/2” - 88.90mm | 2-3/16” - 55.56mm | N/A | N/A | N/A | N/A | 1.565lbs |

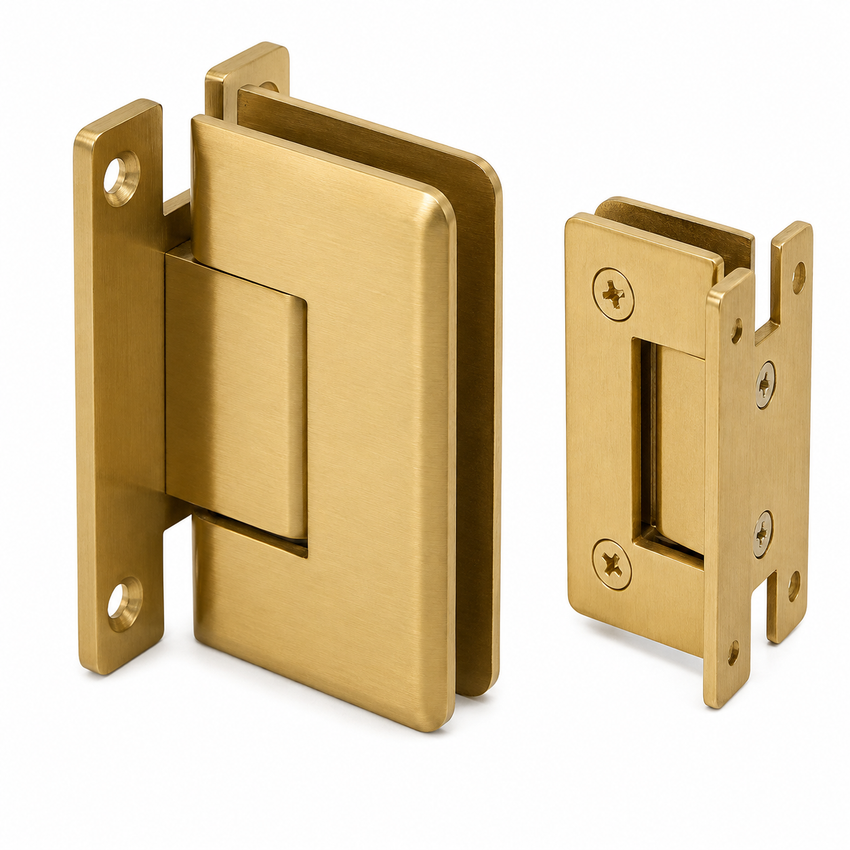

SATIN BRASS | 80lbs – 36.28kg | 120lbs – 54.43kg | 28” - 71.12cm | 32” - 81.28cm | 3-1/2” - 88.90mm | 2-3/16” - 55.56mm | N/A | N/A | N/A | N/A | 1.565lbs |
OIL RUBBED BRONZE | 80lbs – 36.28kg | 120lbs – 54.43kg | 28” - 71.12cm | 32” - 81.28cm | 3-1/2” - 88.90mm | 2-3/16” - 55.56mm | N/A | N/A | N/A | N/A | 1.565lbs |
LUX-HBPH-DRAWINGS | Download |
LUX-HBPH-FAB | Download |
